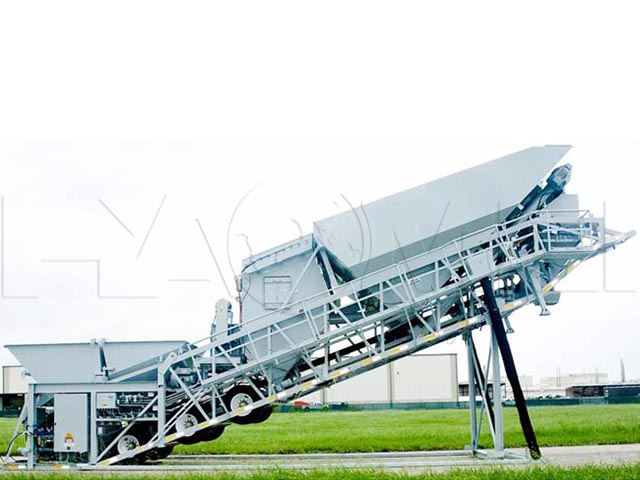

What Are Main Parts of Portable Concrete Plant
The portable concrete plant consists of mixing platform, concrete mixer, aggregate storage bin, aggregate metering device, aggregate lifting device, water metering device, cement metering device, control room, etc. are connected together to form an independent whole, which is convenient for transportation, installation and debugging.
1. Concrete mixer
The mobile concrete mixing plant can choose twin shaft concrete mixer and planetary mixer like JS500, JS750 and JS1000 concrete mixer. It is suitable for mixing various high-quality concrete.
2. Weighing system
The weighing of water, aggregate and cement is independent, simultaneous, automatic and non-interference with each other. Aggregate measurement adopts cumulative measurement, which is accurate and reliable. High-precision sensor and automatic drop compensation function ensure the accuracy of aggregate measurement.
The water and admixture weighing system adopts high-precision sensor for weighing. The water is fed from the pool through the filling pipe into the measuring hopper by the water supply pump, and the weighing is carried out by the pneumatic butterfly valve.
Cement and powder admixtures are conveyed by screw conveyor to the powder weighing hopper, and are controlled by the weighing instrument for cumulative weighing. When the set weight is reached, the control system sequentially issues instructions to stop the transportation of screw conveyor, and the weighing hopper discharges the material to the mixer through the pneumatic butterfly valve.
3. Control system
The microcomputer control system of the complete mixing plant adopts industrial computer. The system can be controlled automatically or manually according to customer requirements. The operation is simple and convenient. The interface simulates the entire dynamic process flow of the mixing plant, which is intuitive and clear. It can store various proportions and working data of the mixing plant, and print various reports as required.
4. Pre-connect
In order to meet customers' requirements for speed, functionality and compactness, Haomei portable cement plant are fully pre-connected complete sets of equipment. This mode of operation significantly reduces the installation and commissioning time of the mixing plant.
All equipment is debugged before leaving the factory. There is no need to remove and connect cables when the equipment is transferred. The air system and the main structure are also closely connected, and the equipment does not need to be disassembled or assembled when it needs transferring.
1. Concrete mixer
The mobile concrete mixing plant can choose twin shaft concrete mixer and planetary mixer like JS500, JS750 and JS1000 concrete mixer. It is suitable for mixing various high-quality concrete.
2. Weighing system
The weighing of water, aggregate and cement is independent, simultaneous, automatic and non-interference with each other. Aggregate measurement adopts cumulative measurement, which is accurate and reliable. High-precision sensor and automatic drop compensation function ensure the accuracy of aggregate measurement.
The water and admixture weighing system adopts high-precision sensor for weighing. The water is fed from the pool through the filling pipe into the measuring hopper by the water supply pump, and the weighing is carried out by the pneumatic butterfly valve.
Cement and powder admixtures are conveyed by screw conveyor to the powder weighing hopper, and are controlled by the weighing instrument for cumulative weighing. When the set weight is reached, the control system sequentially issues instructions to stop the transportation of screw conveyor, and the weighing hopper discharges the material to the mixer through the pneumatic butterfly valve.
3. Control system
The microcomputer control system of the complete mixing plant adopts industrial computer. The system can be controlled automatically or manually according to customer requirements. The operation is simple and convenient. The interface simulates the entire dynamic process flow of the mixing plant, which is intuitive and clear. It can store various proportions and working data of the mixing plant, and print various reports as required.
4. Pre-connect
In order to meet customers' requirements for speed, functionality and compactness, Haomei portable cement plant are fully pre-connected complete sets of equipment. This mode of operation significantly reduces the installation and commissioning time of the mixing plant.
All equipment is debugged before leaving the factory. There is no need to remove and connect cables when the equipment is transferred. The air system and the main structure are also closely connected, and the equipment does not need to be disassembled or assembled when it needs transferring.
